Product Description
The Balcrank 3330-159 Oil Control Handle with Digital Register Meter is designed specifically to dispense motor oils, gear oils, automatic transmission fluid, antifreeze (Glycol), and antifreeze/water solution. This model comes with the Flex-Memory, 1/4 turn tip for use specifically with OIL.
Perfect balance, lightweight, ruggedness, and comfortable grip make it the best choice for overhead reel systems. When not in use for 30 seconds, the meter enters "sleep mode", which prolongs battery life. When in sleep mode, the meter is turned on by a simple press of the ON/RESET button or if the meter detects fluid flow. The trigger allows for progressive opening of the valve for better control of oil delivery and incorporates a trigger lock to prevent accidental opening. The valve can be locked in the open position by means of the trigger lock button.

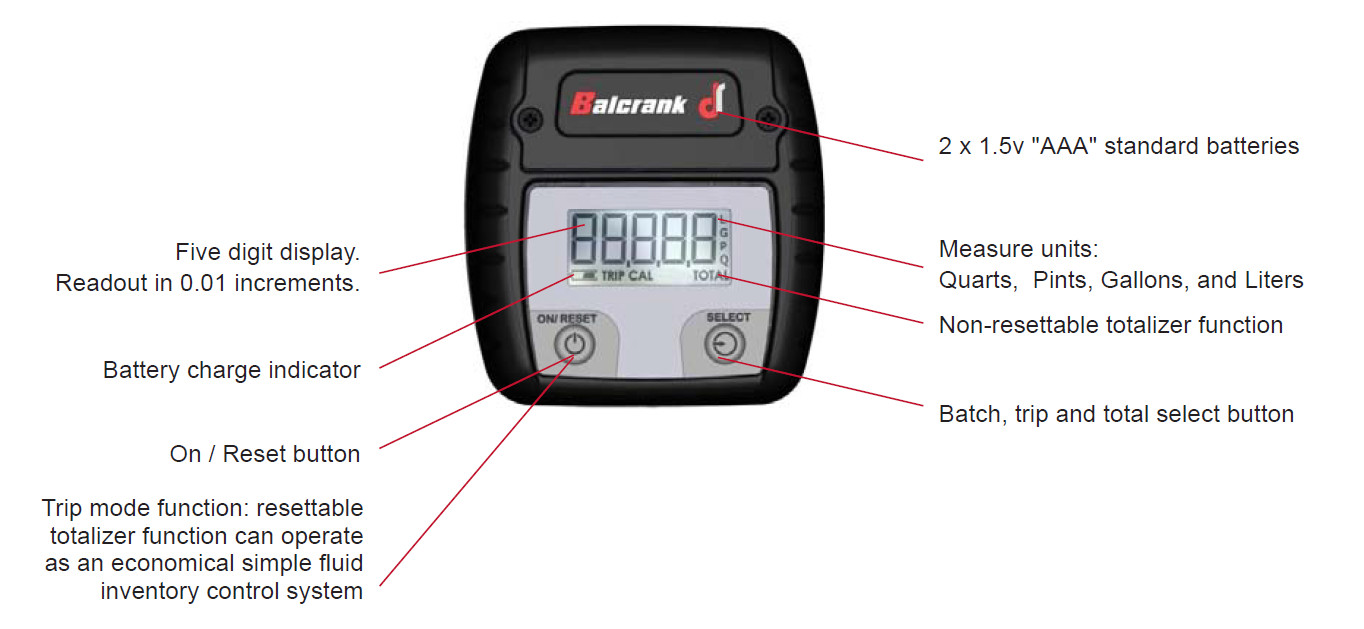

The electronic register module can be programmed to dispense in pints, quarts, liters, or gallons and will totalize in liters or gallons. A calibration factor and unit of measure are programmed during factory test. A 5-digit liquid crystal display, accurate to the third decimal place, shows the exact amount of fluid dispensed.
Great for auto dealers, fast lube and maintenance shops, fleets, mining/construction, and lube trucks.
FEATURES
- Precision robotically machined aluminum die-cast fluid chamber for repeatable accuracy
- Sealed battery compartment; 2 AAA batteries
- Low power consumption with auto sleep function
- Trip mode function; can operate as a simple fluid management device
- Non-resettable totalizer; maintains total volume of meter since day one
- Ergonomic comfort handle and unique 1/4 turn manual tip
- Flanged coupling; prevents leaks commonly found in competitive meters
- Swivel protective cover
- Affordable repairability
SPECIFICATIONS
| Units of Measure | Batch: Gallons, Quarts, Pints, and Liters (in 0.01 increments) |
| Accuracy | +/- 0.5% of reading (lubricating oils) |
| Flow Range | 0.26-8 gal/min (1-30 l/min) |
| Maximum PSI | 1,450 psi (100 bar) |
| Swivel Inlet | 1/2" NPT(F) |
| Dispense Nozzle OD | Auto = 0.605" Manual 1/4 turn for OIL = 0.705" Manual 1/4 turn for ATF= 0.315" Verify ID of ATF fill port for compatibility |
| Operating Temperature | 14º F to 140º F (-10º C to 60º C) |
| Weight | 4 lb (1.80 kg) |
| Battery | 2 x 1.5V alkaline (2x "AAA" batteries) |
| Wetted Materials | Liquid Crystal Polymer (LCP), aluminum, Buna-N™, zinc plated steel, stainless steel, neodymium, and brass |
| Service Bulletin | SB 3095 |
NOTE: The DR Meter has an exclusive line of extensions and nozzles and are not interchangeable with conventional meters. For a list of compatible extensions and nozzles, please see the catalog.
