MR6
Repair parts for Challenger 6,000lb, portable mid-rise lift. If you do not see a link to the part you need below, please contact us for further assistance.
Click on any of the diagrams below to see its full-sized version.

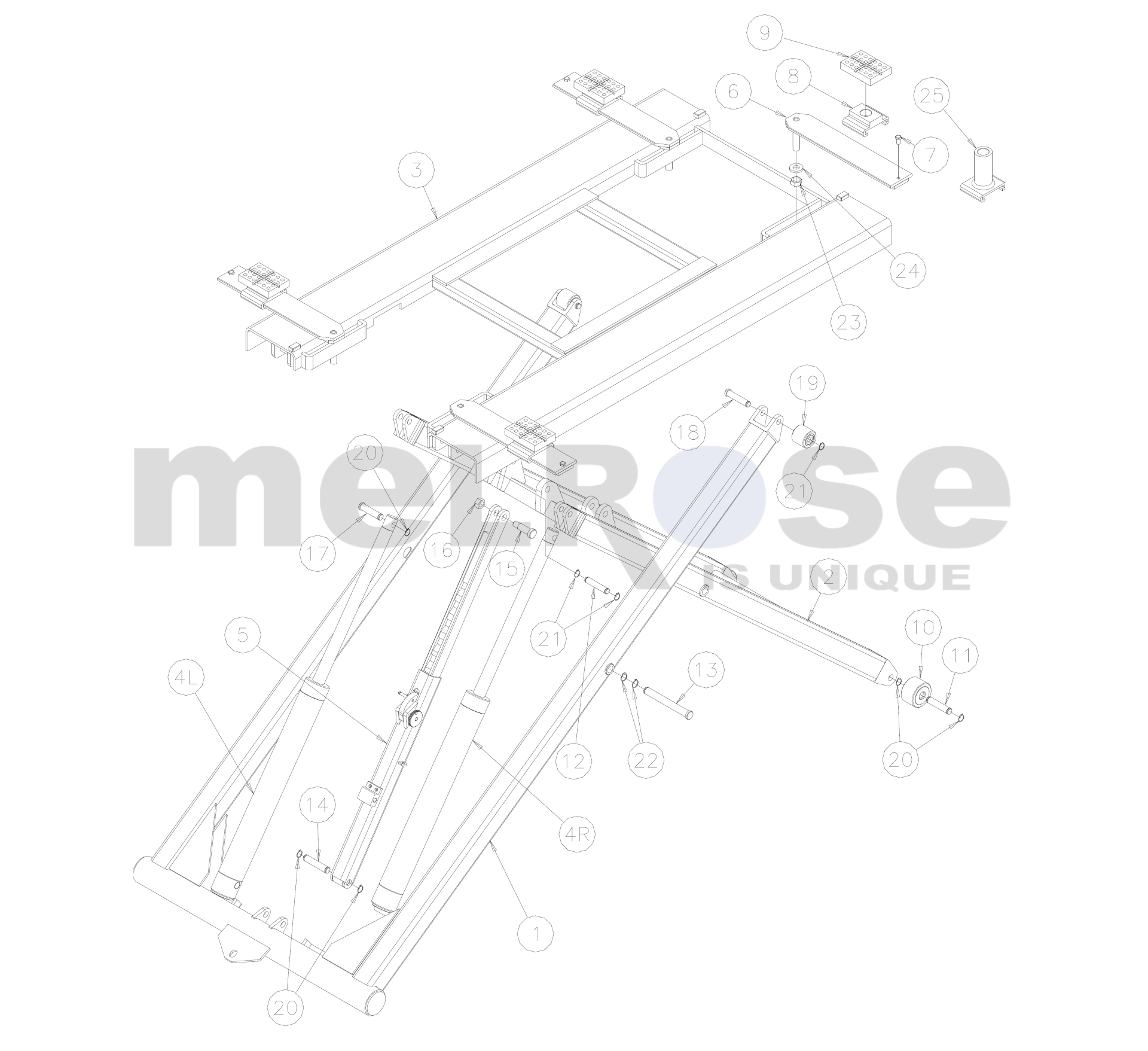

| Diagram Item # | Part Description | Part # |
| 1 | Scissor Outside | GTYJ3-01-00 |
| 2 | Scissor Inside | GTYJ3-03-00 |
| 3 | Platform | GTYJ3-02-00 |
| 4L | Cylinder Assembly (Left) | GTYJ3-04-00L |
| 4R | Cylinder Assembly (Right) | GTYJ3-04-00R |
| 5 | Safety Locking Assembly | GTYJ3-07-00CH |
| 6 | Plate | TYJ3-05-03CH |
| 7 | Hex Bolt, M10x20 | MR6-002 |
| 8 | 3" Extension Base | TYJ3-05-02 |
| 9 | Foot Pad | TYJ3-05-01 |
| 10 | Wheel (Big) | TYJ3-11-00 |
| 11 | Wheel Pin (Big) | TYJ3-12 |
| 12 | Connecting Pin | TYJ3-16 |
| 13 | Scissor Pin | TYJ3-13 |
| 14 | Safety Locking Pin (Bottom) | TYJ3-08 |
| 15 | Safety Locking Pin (Top) | TYJ3-10 |
| 16 | Locking Nut, M18 | SR-0114 |
| 17 | Cylinder Pin | TYJ3-09 |
| 18 | Wheel Pin (Small) | TYJ3-15 |
| 19 | Wheel (Small) | TYJ3-14-00 |
| 20 | Retaining Ring 20mm | X10-020 |
| 21 | Retaining Ring 18mm | MR6-003 |
| 22 | Retaining Ring 24mm | MR6-004 |
| 23 | Hex Nut, M20 | B40129 |
| 24 | Washer, M20 | TYJ3-17 |
| 25 | 6-7/8" Extension Base | TYJ3-05-02G |

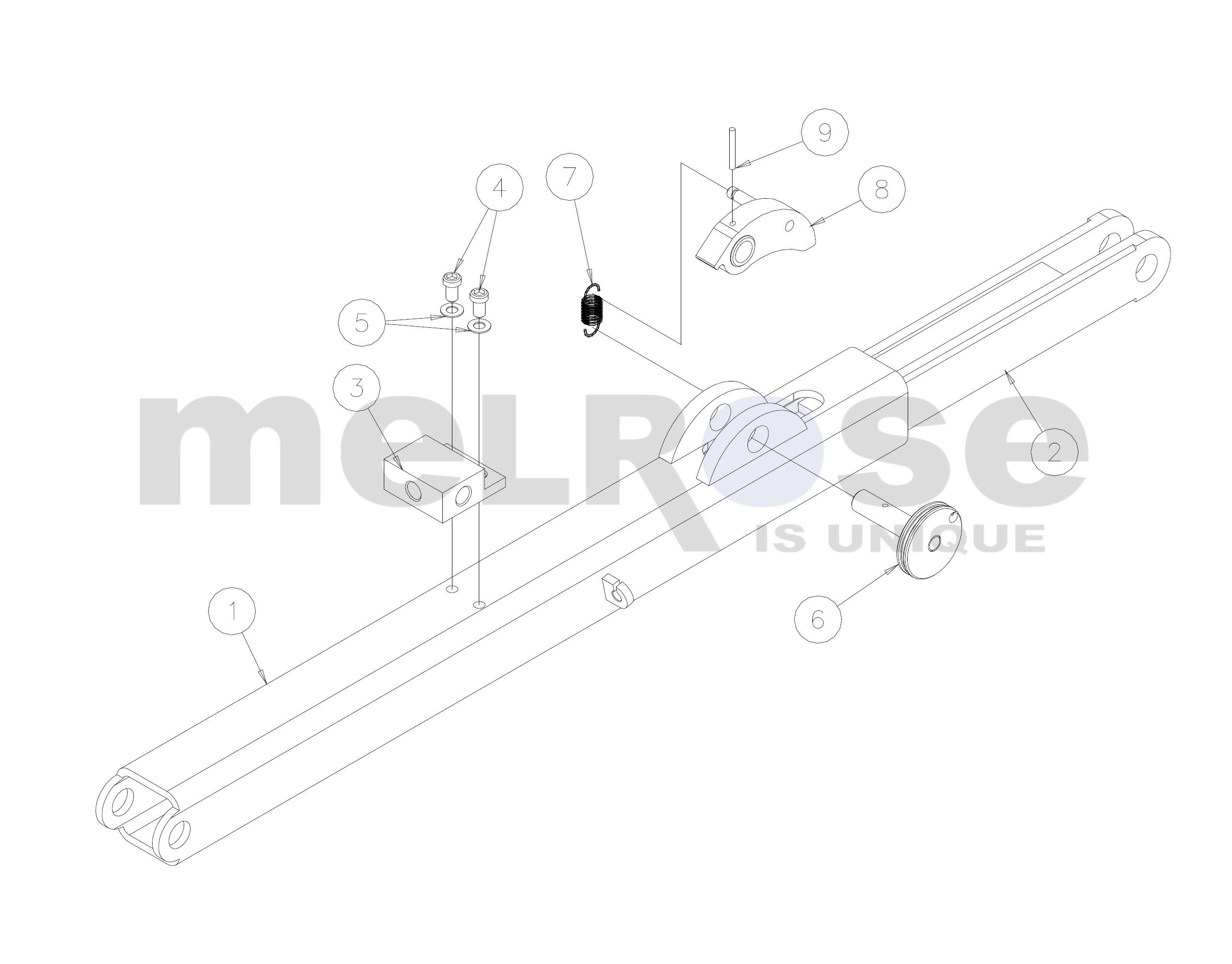

| Diagram Item # | Part Description | Part # |
| 1 | Lock Sheath | GTYJ3-07-02CH |
| 2 | Lock Pole | GTYJ3-07-01 |
| 3 | Base | TYJ3-07-05 |
| 4 | Socket Head Bolt, M8 x 16 | MR6-006 |
| 5 | Washer, M8 | SR-0112 |
| 6 | Pulley Assembly | TYJ3-07-04-00CH |
| 7 | Spring | TYJ3-07-06 |
| 8 | Lock Block | GTYJ3-07-03CH |
| 9 | Roll Pin 4 x 30 | X10-081 |

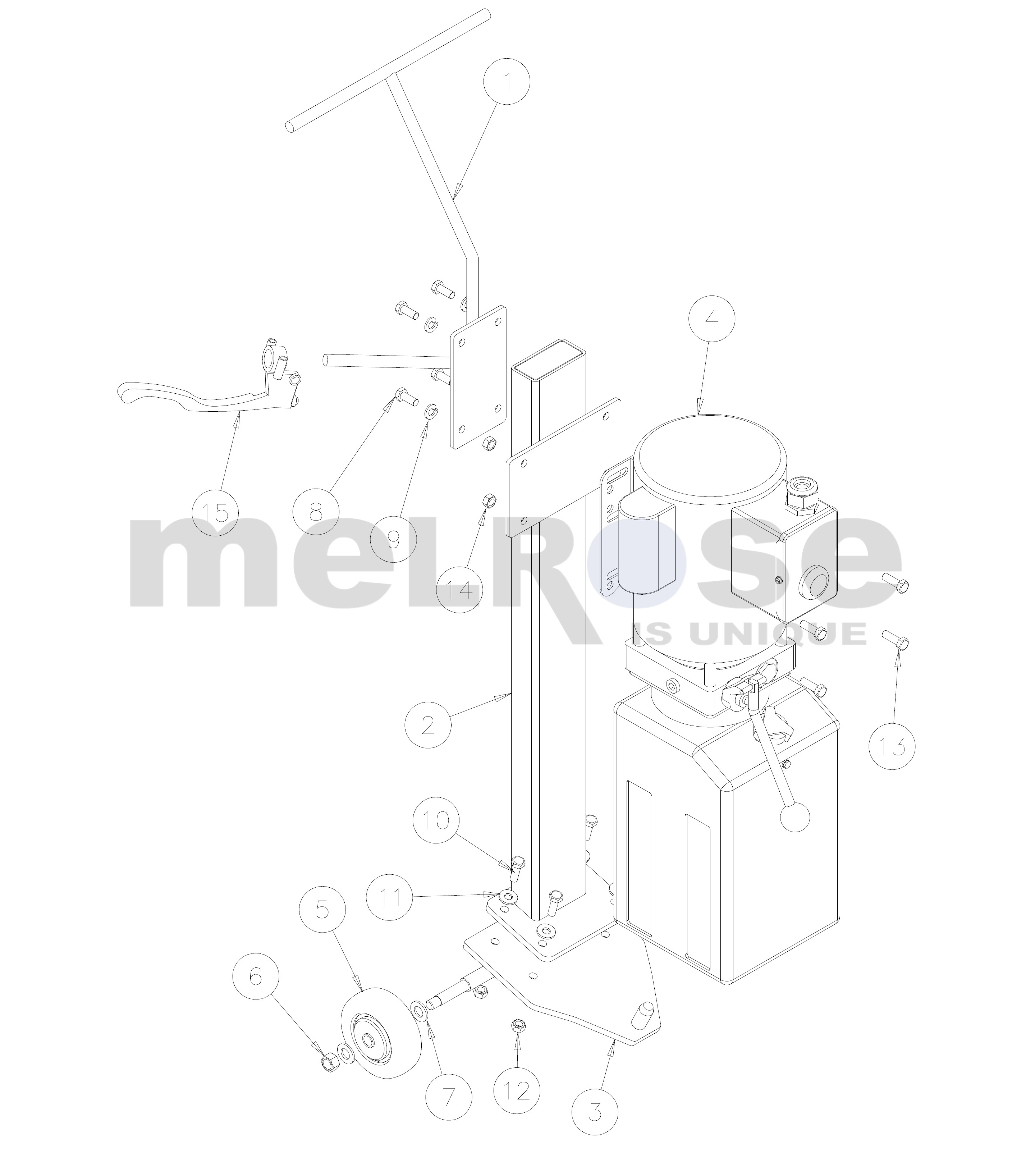

| Diagram Item # | Part Description | Part # |
| 1 | Handle | TYJ3-00-01-1 |
| 2 | Stand | TYJ3-00-01-2-1 |
| 3 | Base | TYJ3-00-01-2 |
| 4 | Electric/Hydraulic Power Unit | AB-1563-B |
| 5 | Wheel | TYJ3-00-01-3 |
| 6 | Nut, M12 | X10-040 |
| 7 | Washer, M12 | X10-038 |
| 8 | Hex Bolt, M8x20 | MR6-007 |
| 9 | Lock Washer, M8 | MR6-008 |
| 10 | Hex Bolt, M8x25 | MR6-009 |
| 11 | Washer, M8 | SR-0112 |
| 12 | Nut, M8 | HEXNM8 |
| 13 | Bolt, 5/16"-18 x 1" | A1069 |
| 14 | Nut, 5/16"-18 | 4100237 |
| 15 | Lock Release Handle | TYJ3-32 |

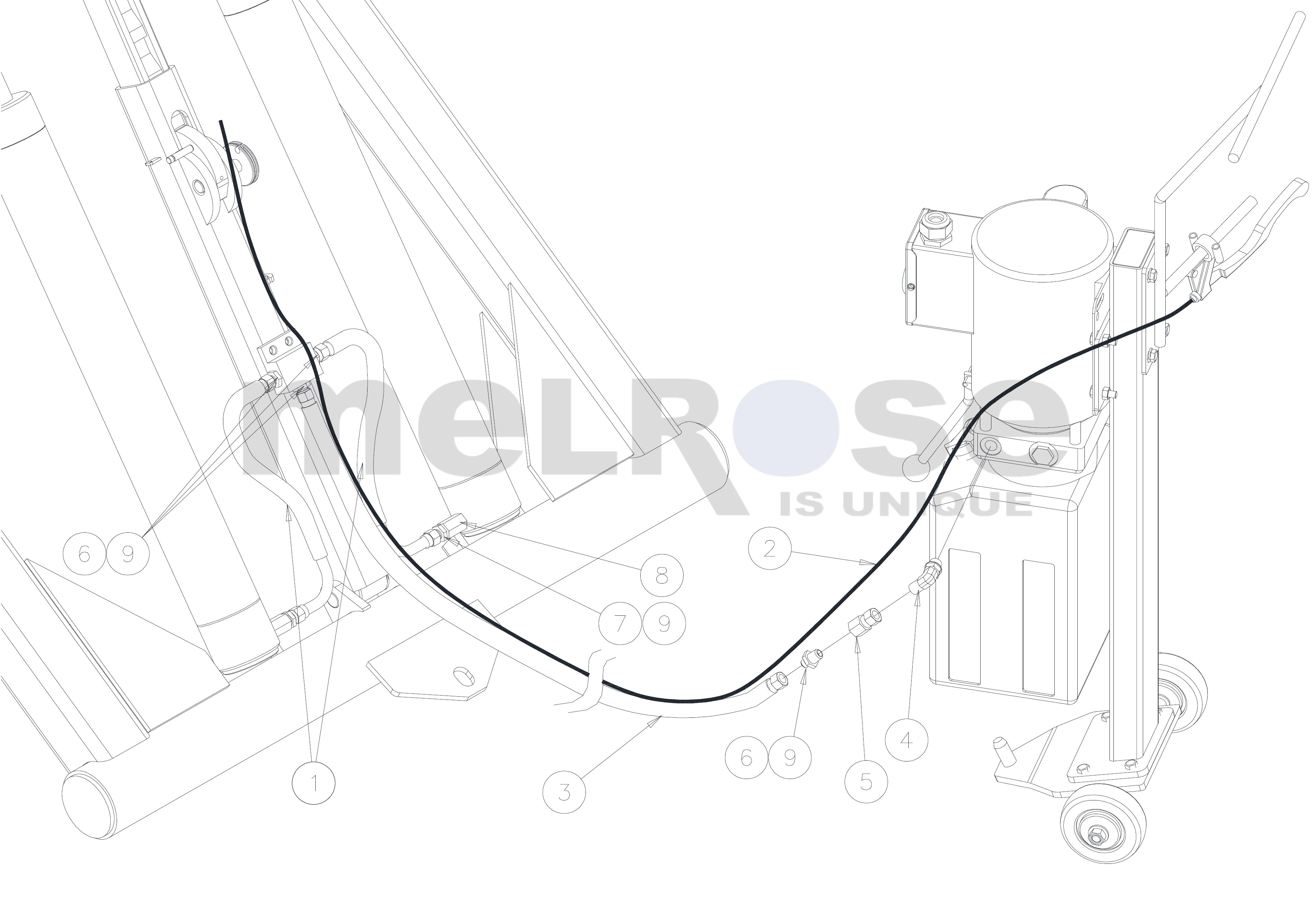

| Diagram Item # | Part Description | Part # |
| 1 | Hydraulic Hose Short | TYJ3-25 |

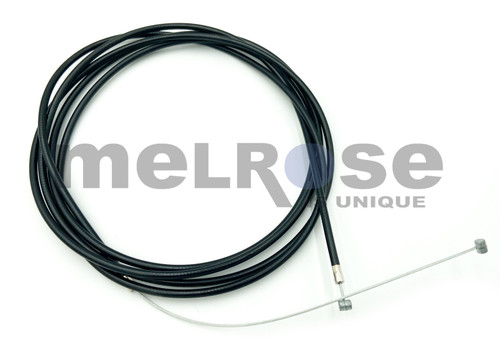

| 2 | Lock Release Cable | GTYJ3-31X |
| 3 | Hydraulic Hose Long | TYJ3-26 |
| 4 | Hydraulic Elbow; 9/16-18 O-Ring x 37 Degree Male | 16167 |
| 5 | 3/8 NPTM x #6 JIC 37 Degree Female Swivel | MR6-011 |
| 6 | M14x1.5-6g Male x 3/8 NPT | TYJ3-21 |
| 7 | M14x1.5-6g Male x 1/4 NPT | TYJ3-19 |
| 8 | Flow Restrictor | TYJ3-20-00 |
| 9 | O-Ring | MR6-012 |
