    • SA10


    Repair parts for Challenger 10,000lb, two-post, surface mounted SA10 lifts. This specific model can be installed symmetrically or asymmetrically. If you do not see a link to the part you need below, please contact us for further assistance.

    Click on the diagram below to see its full-sized version.


    Diagram Item # Part Description Part #
    1 Power Column Weld 3W-01-01P
    2 Idler Column Weld 3W-01-01I
    3a. Power Column Ext. (Std. Height) 3W-01-05PA
    3b. Power Column Ext. (2ft. Ext. Height) 3W-01-25PA
    4a. Idler Column Ext. (Std. Height) 3W-01-05IA
    4b. Idler Column Ext. (2ft. Ext. Height) 3W-01-25IA
    5 Power Overhead Weld 3W-03PA
    6 Idler Overhead Weld 3W-03IA
    7 Carriage Weld 3W-02A
    8 Overhead Mounting Bracket 3W-03-07
    9 Cylinder 16138R
    10 Power Unit (Contact us with your power unit model number to determine replacement)
    11 Tee Fitting 3W-06-15A
    12 Power Hose Assembly 3W-06-06A
    13 Idler Hose Assembly 3W-06-07A
    14 Front Female Arm Weld 3W-04-20A
    15 Front Intermediate Weld 3W-04-23
    16 Front Male Weld 3W-04-28
    17 Arm Pin 3W-02-12
    18 Rear Female Weld 3W-04-02A
    19 Rear Male Weld 3W-04-09A
    20 Foot Pad Assembly B2260
    20a. Rubber Pad B2208
    20b. Foot Pad Weld B2262
    20c. 2 dia. x 30mm Retaining Ring B17256
    20d. 3 dia. x 45mm Retaining Ring B17257
    20e. Threaded Sleeve B2261
    20f. Threaded Insert B17276-1
    27 Arm Pin Retaining Ring 3W-06-01
    28 Inner Arm Restraint Gear 3W-04-17
    29 M10 x 30 Hex Bolt HEXHM1030
    30 M10 Flat Washer X10-073
    31 M10 Spring Lock Washer B31037
    32 Arm Stop Insert 3W-04-18
    33 M8 x 14 Flat Head Allen Bolt, 10.9 3W-10-10
    34 Carriage Slide Block 3W-02-11A
    35 Rubber Bumper Insert 3W-06-03
    36 Access Cover 3W-06-16
    37 Arm Restraint Gear Shaft 3W-02-14
    38 Arm Restraint Shaft Spring 3W-02-15
    39 Outer Arm Restraint Gear 3W-02-13
    40 Pull Ring 3W-02-16
    41 M6 x 40 Roll Pin 3W-10-01
    42a. Synchronization Cable (Std. Height) 3W-06-08A
    42b. Synchronization Cable (2ft. Ext. Height) 3W-06-28A
    43 M12 Hex Jam Nut HJNM12
    44 Cable Spacer (Asymmetric Only) 3W-06-18
    45a. Hose Extension (Std. Height) 3W-06-05A
    45b. Hose Extension (2ft. Ext. Height) 3W-06-25A
    46 Cylinder Elbow Fitting 3W-06-14A
    47 Cylinder Sleeve 3W-02-18
    48 Cylinder Clamp Ring 3W-02-19
    49 M6 x 10mm Set Screw 3W-10-20
    50 M12 x 20 Hex Bolt 17314
    51 M12 Flat Washer X10-038
    52 M12 Spring Lock Washer X10-039
    53 M20 x 1.5 Thk. Round Shim 3W-10-07
    54 M10 Hex Nut HNM10
    55 M12 x 25 Hex Bolt VS10-40-13
    56 M12 Hex Nut HNM12
    57 Hose Clamp 3W-10-15A
    58 M10 x 20 Hex Bolt MR6-002
    59 Flexible Guide Tube 3W-01-20
    60 Cable Trap Plate 3W-03-18A
    61

    Lock Release Cable Clamp

    		 3W-06-19
    62 Shutoff Bar Weld 3W-03-13A
    63 M8 x 60 Hex Bolt HEXM860
    64 M8 Flat Washer VS10-10-26
    65 Hose Extension Connector 3W-06-04
    66 Overhead Limit Switch 12045
    67 M10 x 70 Hex Bolt HEXHM1070
    68 Shutoff Mounting Bracket 3W-03-17-04 (Red) or 3W-03-17-06 (Blue)
    69 M5 x 12 Phillips Head Screw 3W-10-03
    70 M5 Hex Nut 3W-10-04
    71 M5 Flat Washer 3W-10-05
    72 M5 Lock Washer 3W-10-06
    73 17mm Sheave Spacer (Asymmetric Only) 3W-03-09B
    74 34mm Sheave Spacer (Symmetric Only) 3W-03-09
    75 Cable Sheave 3W-01-04-03
    76 Short Sheave Pin (Asymmetric Only) 3W-03-12
    77 Medium Sheave Pin (Asymmetric Only) 3W-03-11
    78 Long Sheave Pin (Symmetric Only) 3W-03-10
    79 M19 Snap Ring SR-0121
    80 Sheave Retaining Bolt 3W-01-04-05
    81 M6 x 12 Hex Bolt Q4P09-007
    82 M10 x 25 Hex Bolt HEXM1025
    83 M6 Flat Washer X10-032
    84 M6 Lock Washer X10-033
    85 Lock Pawl 3W-01-08
    86 Lock Clevis Pin 3W-01-14
    87 M6 x 20 Socket Head Cap Screw QRJ9-41
    88 Lock Release Cam Pin 3W-01-16
    89 Lock Spring (Cam) 3W-01-06A
    90 Lock Release Cam 3W-01-19
    91 Lock Release Lever 3W-01-17
    92 Knob 3W-01-22
    93 Shutoff Bar Cover 3W-03-15A
    94 M8 x 8 Phillips Pan Head Screw PPHSM8X8
    95 M8 Spring Lock Washer MR6-008
    96 M10 Hex Jam Nut HJNM10
    97 M8 x 30 Hex Bolt X10-088
    98 M8 Hex Nut HEXNM8
    99 M8 x 20 Socket Head Cap Screw Q4P09-006
    100 Lock Spring (Pawl) 3W-01-13A
    101 Lock Block Sleeve Insert 3W-01-23
    102a. Lock Release Cable (Std. Height) 3W-06-11A
    102b. Lock Release Cable (2ft. Ext. Height) 3W-06-31A
    103 M9 Snap Ring VS10-10-27
    104 Power Lock Cover 3W-01-11-01
    105 Idler Lock Cover 3W-01-11-02

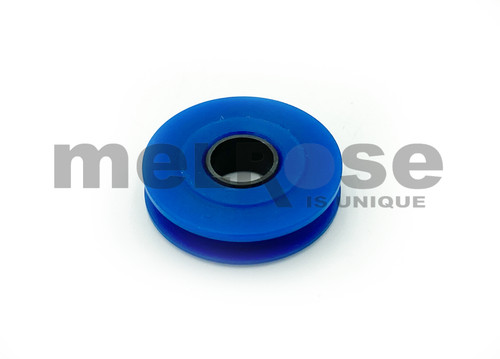

    106 Lock Pulley 3W-01-18
    110 Rear Arm Assembly (w/o Footpad & Pin) 3W-04-01A
    111 Front Arm Assembly (w/o Footpad & Pin) 3W-04-19A
