VLE10
Repair parts for Challenger 10,000lb, two-post, surface mounted LE10 lift. If you do not see a link to the part you need below, please contact us for further assistance.
Click on any of the diagrams below to see its full-sized version.
| Diagram Item # | Part Description | Part # |
| 1a. | Power Column Weld | EAS2217V01A |
| 1b. | Idler Column Weld | EAS2217V02A |
| 2a. | Standard Height Extension | L5-02-02-01CH |
| 2b. | 2ft Extended Height Extension | L5-02-02-01CHH |
| 3 | Overhead Weld | L5-03-01 |
| 4 | Carriage | EAS2217V04A |
| 5a. | Power Front Female Arm | EAA0497V05A |
| 5b. | Idler Front Female Arm | EAA0497V06A |
| 8 | Arm Pin | JSJ5-11 |
| 9 | Rear Female Arm | JSJ5B-09-01-00B |
| 10 | Rear Male Arm | JSJ5-09-02-00CH |
| 11 | Foot Pad Assembly | B2270 |
| 11a. | Rubber Arm Pad Insert | A1104-H |
| 12 | O-Ring for Hyd. Cylinder | JSJ5-07-00CHA |
| 13a. | Power Unit | AB-9367 |
| 13b. | Power Unit (Three Phase) | AD-9367 |
| 14 | Shutoff Bar | JSJ5-03-02CH |
| 15 | Shutoff Bar Cushion | JSJ5-03-03 |
| 16 | Hose Guide Bracket | JSJ4-02-02-02 |
| 17 | Hose Guide | JSJ4-02-17 |
| 18 | Hose Guide Nut | JSJ4-02-18 |
| 19a. | Power Side Hose Guide | JSJ5-02-03-00Q |
| 19b. | Idler Side Hose Guide | JSJ5-02-03-00FQ |
| 20 | Washer 6mm | X10-032 |
| 21 | Spring Washer 6mm | X10-033 |
| 22 | Nut M6 | X10-034 |
| 23 | Bolt M6 x 20 | X10-051 |
| 24a. | Synchronizing Cable (Standard Height) | L5-04-00CH |
| 24b. | Synchronizing Cable (2ft Ext. Height) | L5-04-00CHH |
| 25 | Bolt M12 x 30 | X10-037 |
| 26 | Spring Washer 12mm | X10-039 |
| 27 | Washer 12mm | X10-038 |
| 28 | Nut M12 | X10-040 |
| 29 | Idler Column Hose | JSJ5-18CH |
| 30 | Union Tee | JSJ4-15 |
| 31 | Power Unit Hose | JSJ5-17CH |
| 32 | O-Ring Elbow | JSJ5-19 |
| 33 | Cylinder Elbow, O-Ring | JSJ6-19 |
| 34 | Power Column Hose | JSJ4-16 |
| 35 | 3/4" x 5-1/2" Concrete Anchor | 31058 |
| 36 | Bolt M8 x 25 | X10-060 |
| 37 | Nut M8 | X10-048 |
| 38 | Lock Cover | JSJ5-02-14CH |

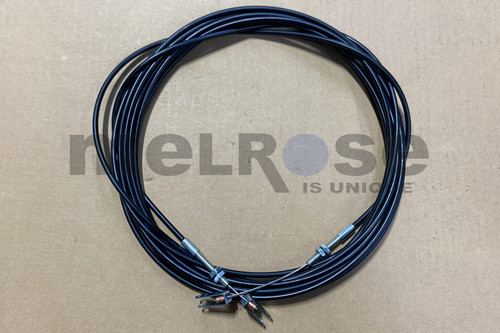

| 39a. | Lock Release Cable (Standard Height) | L5-06-00CH |
| 39b. | Lock Release Cable (2ft. Ext. Height) | L5-06-00CHH |
| 40 | Lock Pawl | B1140 |
| 41 | Lock Spring, 1/2" O.D. | A1132 |
| 42 | M12 Lock Nut | 37013 |
| 43 | Shoulder Bolt | 30020 |
| 44 | Lock Spring, 3/8" O.D. | A1131 |
| 45 | Lock Release Handle Assembly | JSJ5-02-04-00CH |
| 46 | Front Outer Gear | EAS2217V10A |
| 47 | Front Arm Restraint Pin | EAM0172V16A |
| 48 | Lock Knob | JSJ3-01-02-2-9 |
| 49 | 20mm Dia. Clamp | 1-04982A |
| 50 | M8 x 12 Screw | VS10-10-25 |
| 51 | 5mm Dia. Clamp | 1-05082A |
| 52 | M5 x 10 Screw | X10-065 |
| 53 | Clevis Pin Kit | 37119 |
| 54 | 20mm Washer | X10-099 |
| 55 | Limit Switch Package (Includes Part #'s 56-59) | B2064-01 |
| 56 | M6 x 14mm Screw | B2065-3 |
| 57 | M6 serrated Flange Hex Nut | B2065-4 |
| 58 | M10 x 55 Clevis Pin | B2065-5 |
| 59 | Hairpin Cotter Pin | GJY12-3 |
| 60 | Nut M16 | X10-095 |
| 61 | Synch Sheave | JSJ3-03-02 |
| 62 | Axle | JSJ4-03-03 |
| 63 | Middle Spacer Sleeve | JSJ4-03-05 |
| 64 | Spacer Sleeve | JSJ4-03-06 |
| 65 | Washer | X10-55 |
| 66 | Spring Washer 10mm | X10-074 |
| 67 | Screw M10 x 25 | X10-077 |
| 68a. | Inner Gear (Rear) | JSJ5-09-07 |
| 68b. | Inner Gear (Front) | EAM0172V20A |
| 69 | M10 Screw | JSJ4-09-08 |
| 70 | 10mm Flat Washer | X10-073 |
| 71 | Spring Pin 4 x 30 | X10-081 |
| 72 | Arm Restraint Spring | JSJ4-14 |
| 73 | Rear Outer Gear | JSJ4-12 |

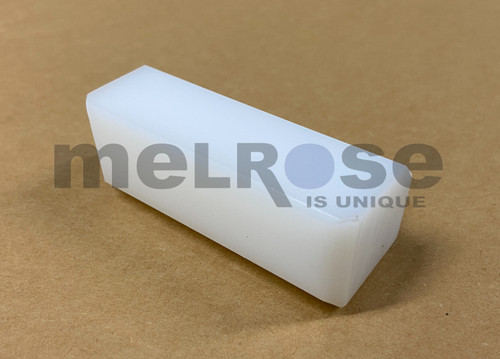

| 74 | Slide Block | JSJ5-08-15 |
| 75 | Bolt M12 x 45 | X10-092 |

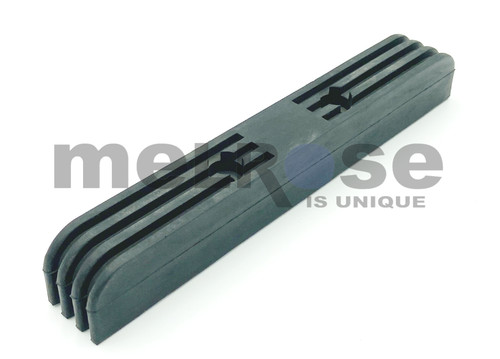

| 76 | Door Guard | JSJ4-05CH |
| 77 | Washer 8mm | X10-087 |
| 78 | Bolt M8 x 30 | X10-088 |
| 79 | Spring Pin 4 x 24 | X10-080 |

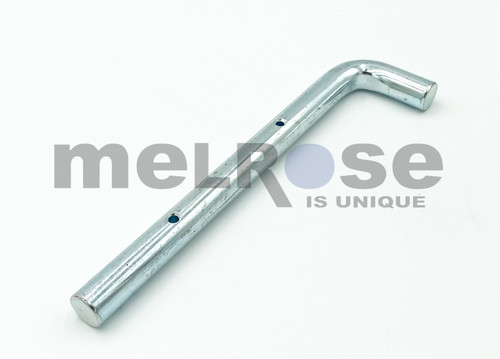

| 80 | Rear Arm Restraint Pin | JSJ5-13 |
| 81 | Roll Pin, 6 Dia. x 30 | B2211 |
| 82 | 40.5 x 48 x 20 Collar | JSJ5-22CH |
| 83 | M8 x 8 Set Screw Cup Point | JSJ5-23CH |
| 84 | Cable Trapping Rod | JSJ5-03-07CH |
| 85 | M6 Lock Nut | B31061 |
| 86 | Extension Hose (2ft Ext. Height) | JSJ5-21H |
