VS10
Repair parts for the Challenger 10,000lb 2-post lift. This lift could be mounted symmetrically or asymmetrically. If you do not see a link to the part you need below, please contact us for further assistance.

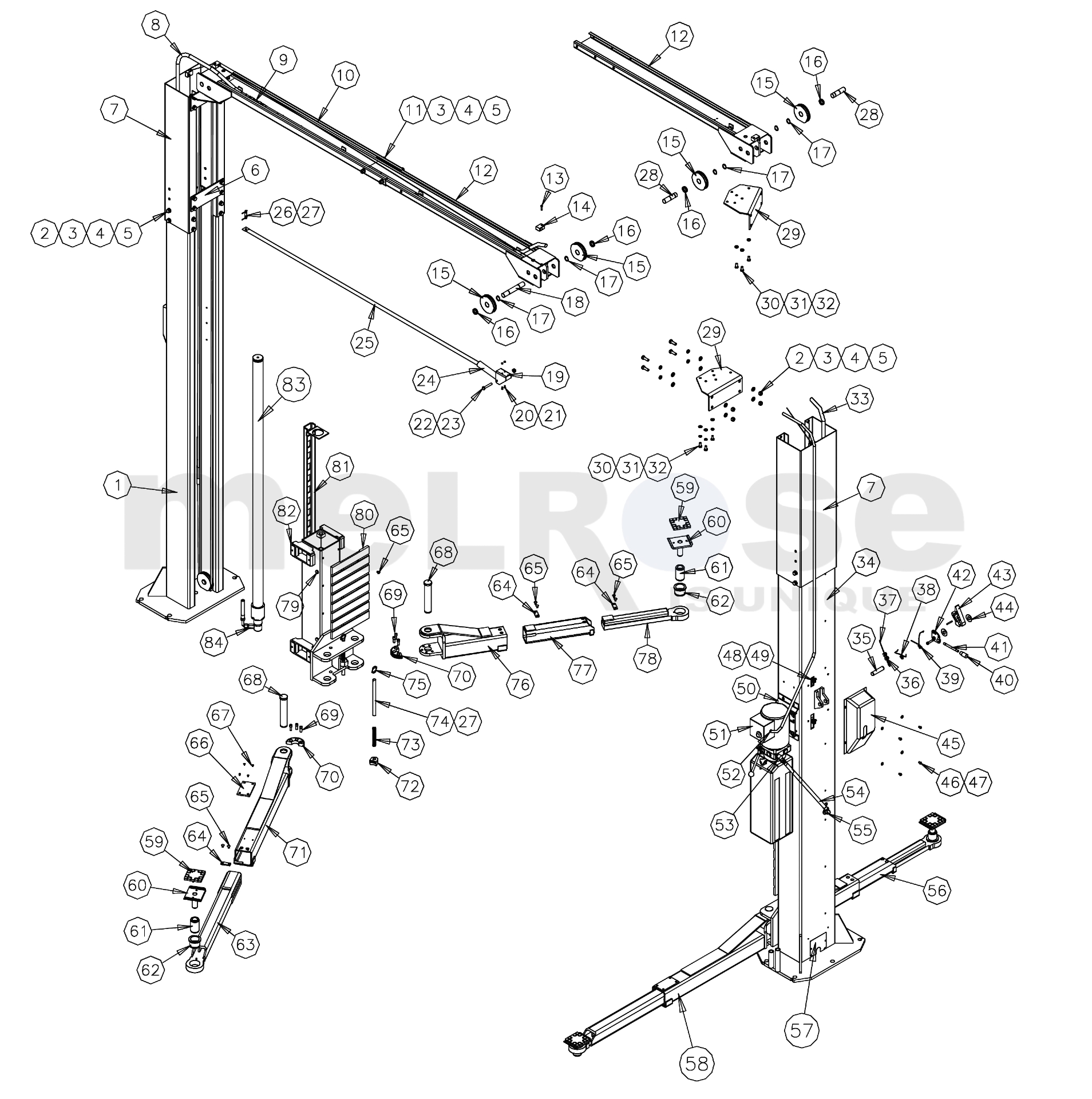

Click on the diagram below to see its full-sized version.
| Diagram Item # | Part Description | Part # |
| 1 | Idler Column Weld | VS10-11-00 |
| 2 | M12 x 35 HHCS | VS10-40-13 |
| 3 | 12mm Lock Washer | X10-039 |
| 4 | 12mm Flat Washer | X10-038 |
| 5 | M12 Hex Nut | X10-040 |
| 6 | Support Strap | VS10-015 |
| 7 | Column Extension Weld | VS10-13-01 |
| 8 | Idler Side Hydraulic Hose | VS10-50-08 |
| 9 | Hydraulic Union | VS10-50-07 |
| 10 | Idler Side (Outer) Overhead Weld | VS10-40-02-00 |
| 11 | M12 x 25 HHCS | VS10-40-17 |
| 12 | Power Side (Inner) Overhead Weld | VS10-40-01-00 |
| 13 | M6 x 25 HHCS | VS10-40-20 |
| 14 | Lock Release Cable Guide | VS10-10-18 |
| 15 | Synchronizing Sheave | VS10-40-04 |
| 16a. | Sheave Spacer, Power Side (8mm) | VS10-40-05 |
| 16b. | Sheave Spacer, Idler Side (12mm) | VS10-40-09 |
| 17 | 25mm Snap Ring (Symmetric / Asymmetric) | VS10-35-06 |
| 18 | Overhead Sheave Axle (Symmetric) | VS10-40-08 |
| 19 | Limit Switch Bracket | VS10-40-21 |
| 20 | M5 x 12 Phillips Pan Head Screw | VS10-40-08 |
| 21 | M5 Hex Nut | VS10-40-21 |
| 22 | 3/8-16 x 2-1/2" Hex Flange Head Capscrew | VS10-40-18 |
| 23 | 3/8-16 Hex Flange Nut | VS10-40-19 |
| 24 | Mercury Switch | 12045 |
| 25 | Shutoff Bar | VS10-40-07 |
| 26 | Shutoff Pivot Pin | VS10-40-03 |
| 27 | 3mm x 26mm Cotter Pin | VS10-20-11 |
| 28 | Overhead Sheave Axle (Asymmetric) | VS10-40-12 |
| 29a. | Overhead Mounting Bracket (Power Side) | VS10-40-10 |
| 29b. | Overhead Mounting Bracket (Idler Side) | VS10-40-11 |
| 30 | M10 x 20 HHCS | VS10-40-22 |
| 31 | 10mm Lock Washer | X10-074 |
| 32 | 10mm Flat Washer | X10-073 |
| 33 | Power Side Hydraulic Hose | VS10-50-03 |
| Power Cylinder Hydraulic Hose | VS10-50-04 | |
| 34 | Power Column Weld | VS10-10-01-00 |
| 35 | Lock Shaft | VS10-10-11 |
| 36 | Cable Clamp | VS10-10-13-00 |
| 37 | Lock Release Cable | LRC001 |
| 38 | Lock Spring (Cam) | VS10-10-16 |
| 39 | Lock Spring (Pawl) | VS10-10-15 |
| 40 | Lock Release Knob | VS10-10-22 |
| 41 | Lock Release Stud | VS10-10-10 |
| 42a. | Lock Release Cam (Power Side) | VS10-10-0-00 |
| 42b. | Lock Release Cam (Idler Side) | VS10-11-03-00 |
| 43a. | Lock Pawl | VS10-10-05 |
| 43b. | Lock Pawl Pad | VS10-10-17 |
| 43c. | 6mm x 40mm Roll Pin | X10-027 |
| 44 | Spacer | VS10-10-23 |
| 45a. | Lock Cover (Power Side) | VS10-10-07-B |
| 45b. | Lock Cover (Idler Side) | VS10-11-02 |
| 46 | M8 Phillips Pan Head Screw | VS10-10-25 |
| 47 | 8mm Flat Washer | VS10-10-26 |
| 48 | Lock Release Pulley | VS10-10-04 |
| 49 | 9mm Snap Ring | VS10-10-27 |
| 50 | Power Unit Bracket | VS10-10-02-00 |
| 51 | Power Unit | 31368-19 |
| 52 | 1/2" Romex Connector | 31060 |
| 53 | Hydraulic Elbow (Power Unit) | VS10-50-10 |
| 54 | Power Unit Hydraulic Hose | VS10-50-05 |
| 55 | Hydraulic Tee | VS10-50-06 (obsolete) |
| 56 | Front Arm Assy. (Item #'s 64, 65, 69, 70, 76, 77, 78, 85) | VS10-32-00 |
| 57 | Rear Access Cover | VS10-10-09 |
| 58 | Rear Arm Assy. (Item #'s 63, 64, 65, 66, 67, 69, 70, 71, 85) | VS10-31-00 |
| 59a. | Rubber Arm Pad | VS10-35-01 |
| 59b. | M6 Locknut (for Arm Pad) | VS10-35-05 |
| 60 | Foot Pad | VS10-35-02-00 |
| 61a. | Intermediate Threaded Insert | VS10-35-04 |
| 61b. | 45mm Retaining Ring (for Intermediate Insert) | X10-068 |
| 62a. | Threaded Insert | VS10-35-03 |
| 62b. | 60mm Retaining Ring (for Threaded Insert) | VS10-35-08 |
| 63 | Rear Male Arm | VS10-31-02-00 |
| 64 | Stop Plate | VS10-31-05 |
| 65 | M8 x 12 Flat Head Screw Grade 10.8 | VS10-31-08 |
| 66 | Rubber Pad (Rear Female Arm) | VS10-31-03 |
| 67 | M5 x 8 Flat Head Screw | VS10-31-06 |
| 68 | Arm Pin | VS10-33-A |
| 69 | M10 x 25 Allen Head Bolt | X10-077 |
| 70 | Arm Restraint Gear (Large) | VS10-31-04 |
| 71 | Rear Female Arm Weld | VS10-31-01-00 |
| 72a. | Arm Restraint Gear (Small) | VS10-20-03 |
| 72b. | 5mm x 40mm Roll Pin | VS10-20-10 |
| 73 | Arm Restraint Spring | VS10-20-05 |
| 74 | Arm Restraint Shaft | VS10-20-06-02 |
| 75 | Pull Ring (Arm Restraint) | VS10-20-06-01 |
| 76 | Front Female Arm Weld | VS10-32-01-00 |
| 77 | Front Intermediate Arm Weld | VS10-32-02-00 |
| 78 | Front Male Arm Weld | VS10-32-03-00 |
| 79 | Nylon Screw | VS10-20-09 |
| 80 | Door Guard | VS10-20-02 |
| 81 | Carriage | VS10-20-01-00 |
| 82 | Slide Block | VS10-20-04 |
| 83 | Hydraulic Cylinder | VS10-50-01-00 |
| 84 | Flow Control Valve | VS10-50-04-00-A |
| Not I/D'd | Synchronizing Cable | VS10-10-06 |
| Not I/D'd | Narrow Setting Cable Spacer | VS10-10-12 |
| Not I/D'd | Asymmetric Setting Cable Spacer | VS10-10-19 |
| Not I/D'd | Hose Guard | VS10-10-20 |
