LE10
Repair parts for Challenger 10,000lb, two-post, surface mounted LE10 lift. If you do not see a link to the part you need below, please contact us for further assistance.
Click on any of the diagrams below to see its full-sized version.
| Diagram Item # | Part Description | Part # |
| 1 | POWER COLUMN WELD | L5-02-01-00CH |
| 1a | IDLER COLUMN WELD | L5-02-01-00CH |
| 2 | STANDARD HEIGHT EXTENSION | L5-02-02-01CH |
| 2a | 2' EXTENDED HEIGHT EXTENSION | L5-02-02-01CHH |
| 3 | OVERHEAD WELD | L5-03-01 |
| 4 | CARRIAGE | JSJ5-08-00CH |
| 5 | FRONT FEMALE ARM | JSJ5B-10-01-00 |
| 6 | FRONT INTERMEDIATE ARM | JSJ5B-10-02-00 |
| 7 | FRONT MALE ARM | JSJ5-10-03-00CH |
| 8 | ARM PIN | JSJ5-11 |
| 9 | REAR FEMALE ARM | JSJ5B-09-01-00B |
| 10 | REAR MALE ARM | JSJ5-09-02-00CH |
| 11 | FOOT PAD ASSEMBLY | B2270 |
| 11a | RUBBER PAD INSERT | A1104-H |
| 11b | FOOT PAD WELD | A1101-1H |
| 11c | 2x30 RETAINING RING | B17256 |
| 11d | THREADED SLEEVE | B2261 |
| 11e | 3x45 RETAINING RING | B17257 |
| 11f | THREADED INSERT | B17276-1 |
| 12 | CYLINDER, O-RING | JSJ5-07-00CHA |
| 13 | POWER UNIT | AB-9367-DLH |
| 13a | POWER UNIT, 3 PHASE | AD-9367 |
| 14 | SHUTOFF BAR | JSJ5-03-02CH |
| 15 | SHUTOFF BAR CUSHION | JSJ5-03-03 |
| 16 | HOSE GUIDE BRACKET | JSJ4-02-02-02 |
| 17 | HOSE GUIDE | JSJ4-02-17 |
| 18 | HOSE GUIDE NUT | JSJ4-02-18 |
| 19 | POWER SIDE HOSE GUIDE | JSJ5-02-03-00Q |
| 19a | IDLER SIDE HOSE GUIDE | JSJ5-02-03-00FQ |
| 20 | WASHER 6MM | X10-032 |
| 21 | SPRING WASHER 6MM | X10-033 |
| 22 | NUT M6 | X10-034 |
| 23 | BOLT M6 x 20 | X10-051 |
| 24 | SYNCHRONIZING CABLE (STANDARD HEIGHT) | JSJ5-04-00CH |
| 24a. | SYNCHRONIZING CABLE (2 FT EXT HEIGHT) | JSJ5-04-00CHH |
| 25 | BOLT M12 x 30 | X10-037 |
| 26 | SPRING WASHER 12MM | X10-039 |
| 27 | WASHER 12MM | X10-038 |
| 28 | NUT M12 | X10-040 |
| 29 | IDLER COLUMN HOSE | JSJ5-18CH |
| 30 | UNION TEE | JSJ4-15 |
| 31 | POWER UNIT HOSE | JSJ5-17CH |
| 32 | O-RING ELBOW | JSJ5-19 |
| 33 | CYLINDER ELBOW, O-RING | JSJ6-19 |
| 34 | POWER COLUMN HOSE | JSJ4-16 |
| 35 | 3/4" x 5-1/2" CONCRETE ANCHOR BOLT | 31058 |
| 36 | BOLT M8 x 25 | X10-060 |
| 37 | NUT M8 | X10-048 |
| 38 | LOCK COVER | JSJ5-02-14CH |

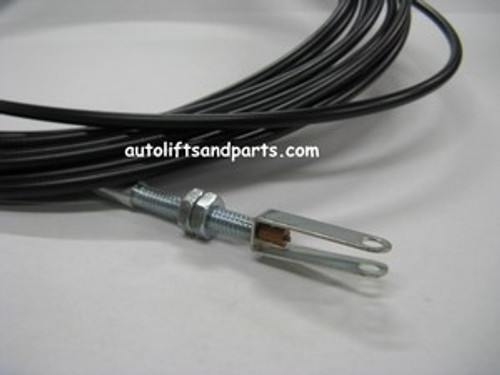

| 39a. | LOCK RELEASE CABLE (STANDARD HEIGHT) | L5-06-00CH |
| 39b. | LOCK RELEASE CABLE (2FT EXTENDED HEIGHT) | L5-06-00CHH |
| 40 | LOCK PAWL | B1140 |
| 41 | LOCK SPRING, 1/2 O.D. | A1132 |
| 42 | M12 LOCK NUT | 1-16388A |
| 43 | SHOULDER BOLT | 1-16288A |
| 44 | LOCK SPRING, 3/8" O.D. | A1131 |
| 45 | LOCK RELEASE CLEVIS | JSJ5-02-04-01CH |
| 46 | LOCK HANDLE STUD | JSJ5-02-04-02CH |
| 47 | LOCK NUT M10 | X10-096 |
| 48 | LOCK KNOB | JSJ3-01-02-2-9 |
| 49 | CLAMP, 20MM DIA. | 1-04982A |
| 50 | M5 x 10 SCREW | VS10-10-25 |
| 51 | CLAMP, 5MM DIA. | 1-05082A |
| 52 | M5 x 10 SCREW | X10-065 |
| 53 | CLEVIS PIN KIT | 37119 |
| 54 | WASHER 20MM | X10-099 |
| 55 | LIMIT SWITCH PACKAGE (INCLUDES ITEM #s 56-59) | B2064-01 |
| 56 | M6 x 14MM SCREW | B2065-3 |
| 57 | M6 SERRATED FLANGE HEX NUT | B2065-4 |
| 58 | M10 x 55 CLEVIS PIN | B2065-5 |
| 59 | HAIRPIN COTTER PIN | GJY12-3 |
| 60 | NUT M16 | X10-095 |
| 61 | SYNCHRONIZING SHEAVE | JSJ3-03-02 |
| 62 | AXLE | JSJ4-03-03 |
| 63 | MIDDLE SPACER SLEEVE | JSJ4-03-05 |
| 64 | SPACER SLEEVE | JSJ4-03-06 |
| 65 | WASHER | X10-055 |
| 66 | SPRING WASHER 10MM | X10-074 |
| 67 | SCREW M10 x 25 | X10-077 |
| 68 | INNER GEAR | JSJ5-09-07 |
| 69 | M10 SCREW | JSJ4-09-08 |
| 70 | FLAT WASHER 10MM | X10-073 |
| 71 | SPRING PIN 4 x 30 | X10-081 |
| 72 | ARM RESTRAINT SPRING | JSJ4-14 |
| 73 | OUTER GEAR | JSJ4-12 |
| 74 | SLIDE BLOCK | JSJ5-08-15 |
| 75 | BOLT M12 x 45 | X10-092 |
| 76 | DOOR GUARD | JSJ4-05CH |
| 77 | WASHER 8MM | X10-087 |
| 78 | BOLT M8 x 30 | X10-088 |
| 79 | SPRING PIN 4 x 24 | X10-080 |
| 80 | ARM RESTRAINT PIN | JSJ5-13 |
| 81 | ROLL PIN, 6 DIA. x 30 | B2211 |
| 82 | 40.5 x 48 x 20 LONG COLLAR | JSJ5-22CH |
| 83 | M8 x 8 SET SCREW CUP POINT | JSJ5-23CH |
| 84 | CABLE TRAPPING ROD | JSJ5-03-07CH |
| 85 | M6 LOCK NUT | B31061 |
| 86 | EXTENSION HOSE (2FT. EXTENDED HEIGHT) | JSJ5-21H |
