Challenger Lifts 4P14 Parts Breakdown
Repair parts for the Challenger 14,000lb, four-post, model 4P14 lift. These breakdowns show parts between both configurations of 4P14 models, including the 4P14EFX and 4P14XFX.
If you do not see a link to the part you need below, please contact us for further assistance.
PLEASE CLICK ON THE DIAGRAMS BELOW FOR THEIR FULL SIZE VERSIONS
| ITEM # | PART # | QTY / LIFT | DESCRIPTION |
|---|---|---|---|
| 1 | B44011 | 1 | Hydraulic Cylinder |
| 2 | B40082 | 1 | Clevis Pin |
| 3 | B40126 | 5 | 1/8 x 1 1/2" Lg. Cotter Pin |
| 4a. | JZQ7-07-01-00 | 1 | Flat Deck Power Runway (4P14E) |
|
4b. |
JZQ7A-07-01-00 |
1 |
Flat Deck Power Runway (4P14X) |
| 5a. | JZQ7-08-01-00 | 1 | Flat Deck Idler Runway (4P14E) |
|
5b |
JZQ7A-08-01-00 |
1 |
Flat Deck Idler Runway (4P14X) |
| 6 | B40266 | 2 | Wheel Stop |
| 7 | B40083 | 8 | M12 x 35mm Lg. Hex Flange Head Cap Screw |
| 8 | JZQ7-04-01-00 | 1 | Cross Beam Assembly |
| 9 | B40265 | 2 | Wheel Chock |
| 10 | AB-9367-DLH | 1 | Power Unit, 1 Phase, 60Hz, 208–230VAC |
| AD-9367 | 1 | Power Unit, 3 Phase, 230/460VAC | |
| 11 | B40449-P | 1 | Power Column Assembly |
| 12 | B40449-I | 3 | Idler Column Assembly |
| 13 | B40161 | 2 | Entrance Ramp |
| 14 | B40165 | 2 | Ramp Hinge Pin |
| 15 | 40168 | 2 | Ramp Slide |
| 16 | 31062 | 6 | 1/4-20NC x 3/4" Lg. Pan Head Screw |
| 17 | 40085 | 6 | 1/4-20NC Hex Flange Nut |
| 18 | A2128 | 1 | 45° Adapter Elbow - Male #6 O-Ring x Male #6 JIC 37° |
| 19 | 16167 | 1 | 90° Adapter Elbow - Male #6 O-Ring x Male #6 JIC 37° |
| 20 | B40349 | 1 | Hydraulic Hose - Female #6 JIC, Both Ends |
| 21 | B40452 | 4 | Ladder Weld |
| 22 | B40130 | 4 | M20 Hex Jam Nut |
| 23 | B40129 | 4 | M20 Hex Nut |
| 24 | 31058 | 16 | 3/4 x 5-1/2" Anchor Bolt |
| ITEM # | PART # | QTY / LIFT | DESCRIPTION |
|---|---|---|---|

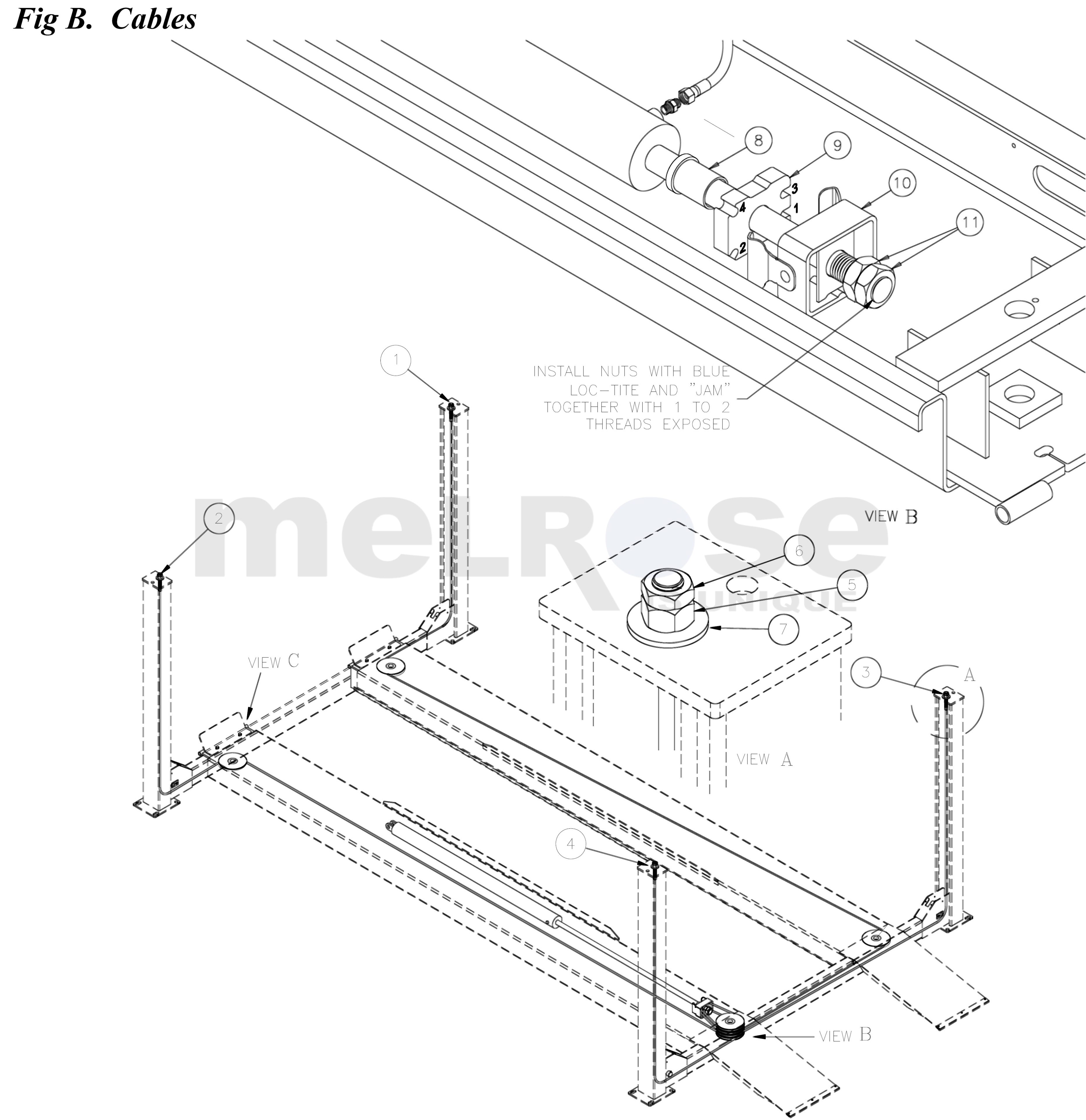

| 1a. | JZQ7-09-01 | 1 | Right Front Cable # 1 (4P14E) |
| 1b. | JZQ7A-09-01 | 1 | Right Front Cable # 1 (4P14X) |
| 2a. | JZQ7-09-02 | 1 | Left Front Cable # 2 (4P14E) |
| 2b. | JZQ7A-09-02 | 1 | Left Front Cable # 2 (4P14X) |
| 3 | JZQ7-09-03 | 1 | Right Rear Cable # 3 |
| 4 | JZQ7-09-04 | 1 | Left Rear Cable # 4 |
| 5 | 40147 | 4 | 7/8-9 Hex Nut |
| 6 | 40148 | 4 | 7/8-9 Hex Jam Nut |
| 7 | 40149 | 4 | 7/8 Flat Washer |
| 8 | 40392-01-00 | 1 | Cylinder Rod Spacer, Stepped, 2 3/8" |
| 9 | B40473 | 1 | Cable Pull Bar |
| 10 | B40474 | 1 | Cable Retainer Weld |
| 11 | B44015 | 2 | M27 Jam Nut |
| ITEM # | PART # | QTY / LIFT | DESCRIPTION |
|---|---|---|---|

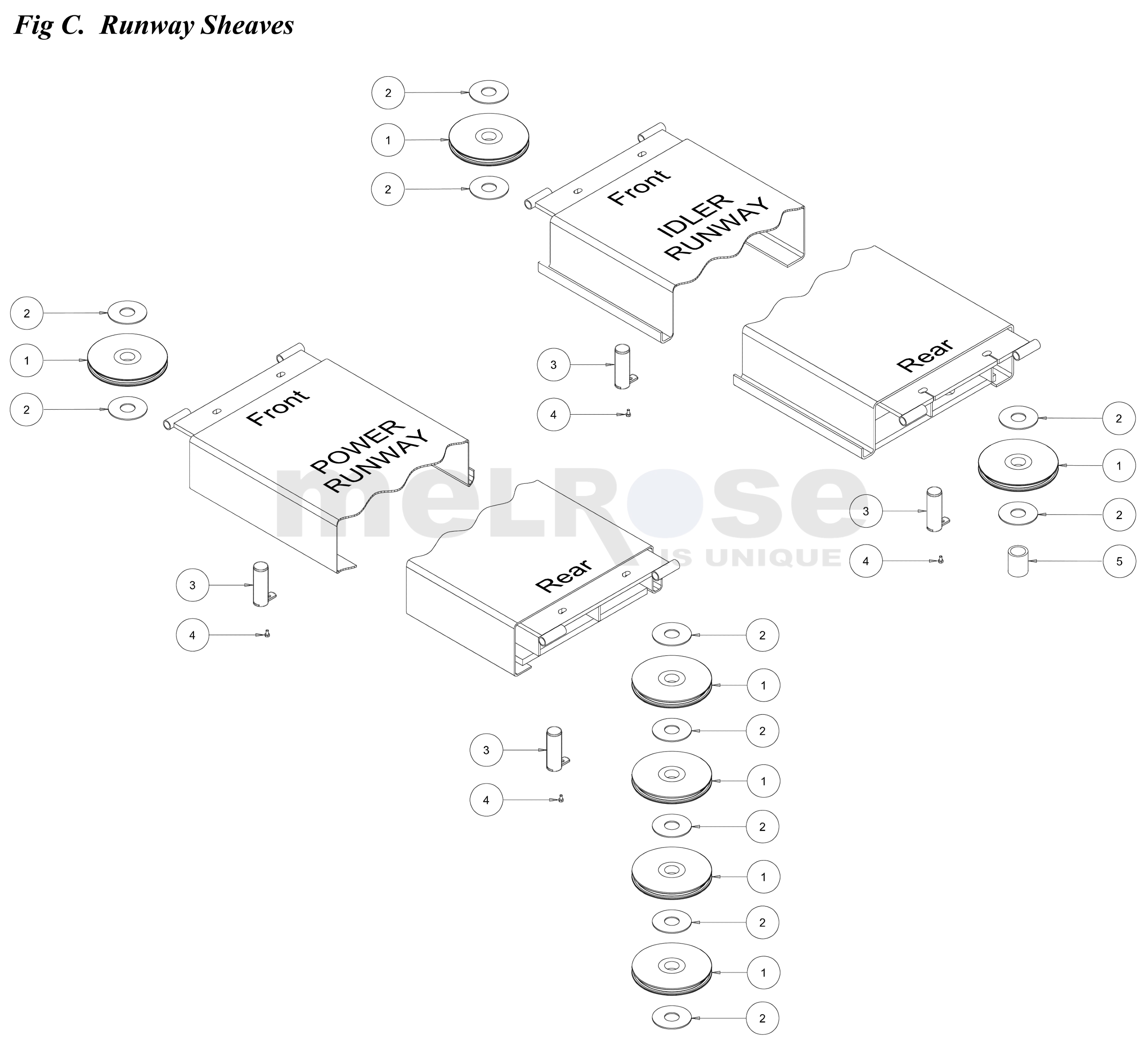

| 1 | B40650 | 10 | Sheave |
| 2 | 40053 | 11 | 1/8" Thick Bearing |
| 3 | B40055 | 4 | Sheave Pin (Runway) |
| 4 | B31188 | 16 | M8 x 16mm Lg. Hex Locking Flange Head Cap Screw |
| 5 | B40438-R | 1 | Runway Sheave Spacer, 2 1/8" |

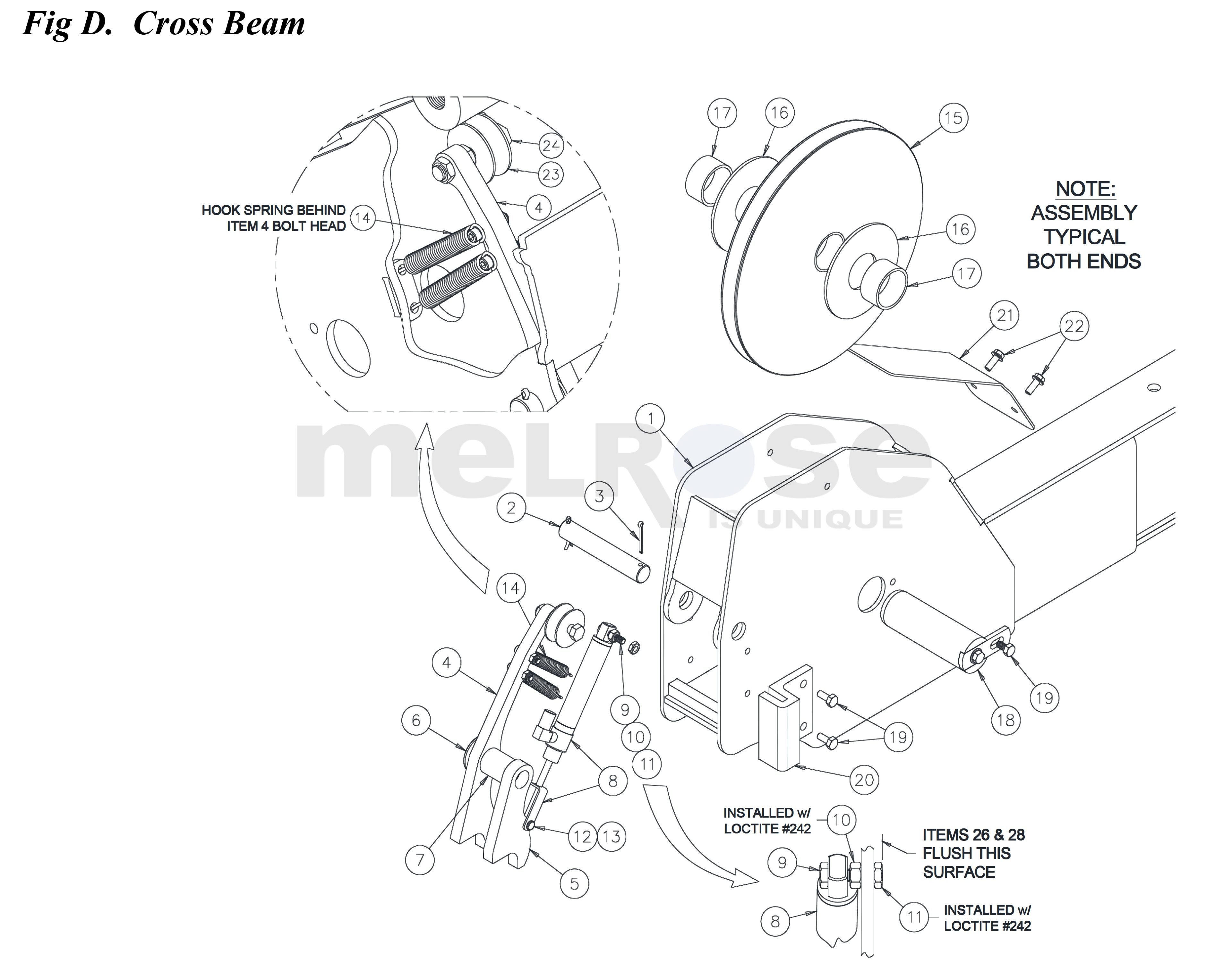

| ITEM # | PART # | QTY / LIFT | DESCRIPTION |
|---|---|---|---|
| 1 | JZQ7-04-01-00 | 2 | Crossbeam Weld |
| 2 | B40127 | 4 | Lock Pivot Pin |
| 3 | B40126 | 8 | 3mm x 38mm Lg. Cotter Pin |
| 4 | B40134 | 2 | Slack Cable Latch |
| 5 | B40131 | 4 | Primary Lock Pawl |
| 6 | B40128 | 4 | 19mm Washer |
| 7 | B40132 | 4 | Spacer Bushing |
| 8 | B40141 | 4 | Air Cylinder Assembly |
| 9 | B40466 | 4 | M6 x 28mm Lg. Hex Head Bolt |
| 10 | B40467 | 4 | M6 Hex Nut |
| 11 | B40144 | 4 | M6 Hex Jam Nut |
| 12 | B40123 | 4 | Clevis Pin |
| 13 | B40124 | 4 | Hair Pin Cotter Pin |
| 14 | B40139 | 8 | Extension Spring |
| 15 | B40650 | 10 | Sheave |
| 16 | B40053 | 4 | 1/8" Thick Bearing |
| 17 | 40438-X | 8 | Sheave Spacer Bushing |
| 18 | B40116 | 4 | Sheave Pin (Cross Beam) |
| 19 | B31188 | 16 | M8 x 16mm Lg. Hex Locking Flange Head Cap Screw |
| 20 | 40118 | 8 | Slide Block |
| 21 | JZQ7-04-02 | 4 | Sheave Guard |
| 22 | 40120 | 8 | 1/4-20NC x 1/2" Lg. Self Tapping Screw |
| 23 | B40135 | 4 | Roller |
| 24 | B40137 | 4 | Retaining Ring |
| ITEM # | PART # | QTY / LIFT | DESCRIPTION |
|---|---|---|---|

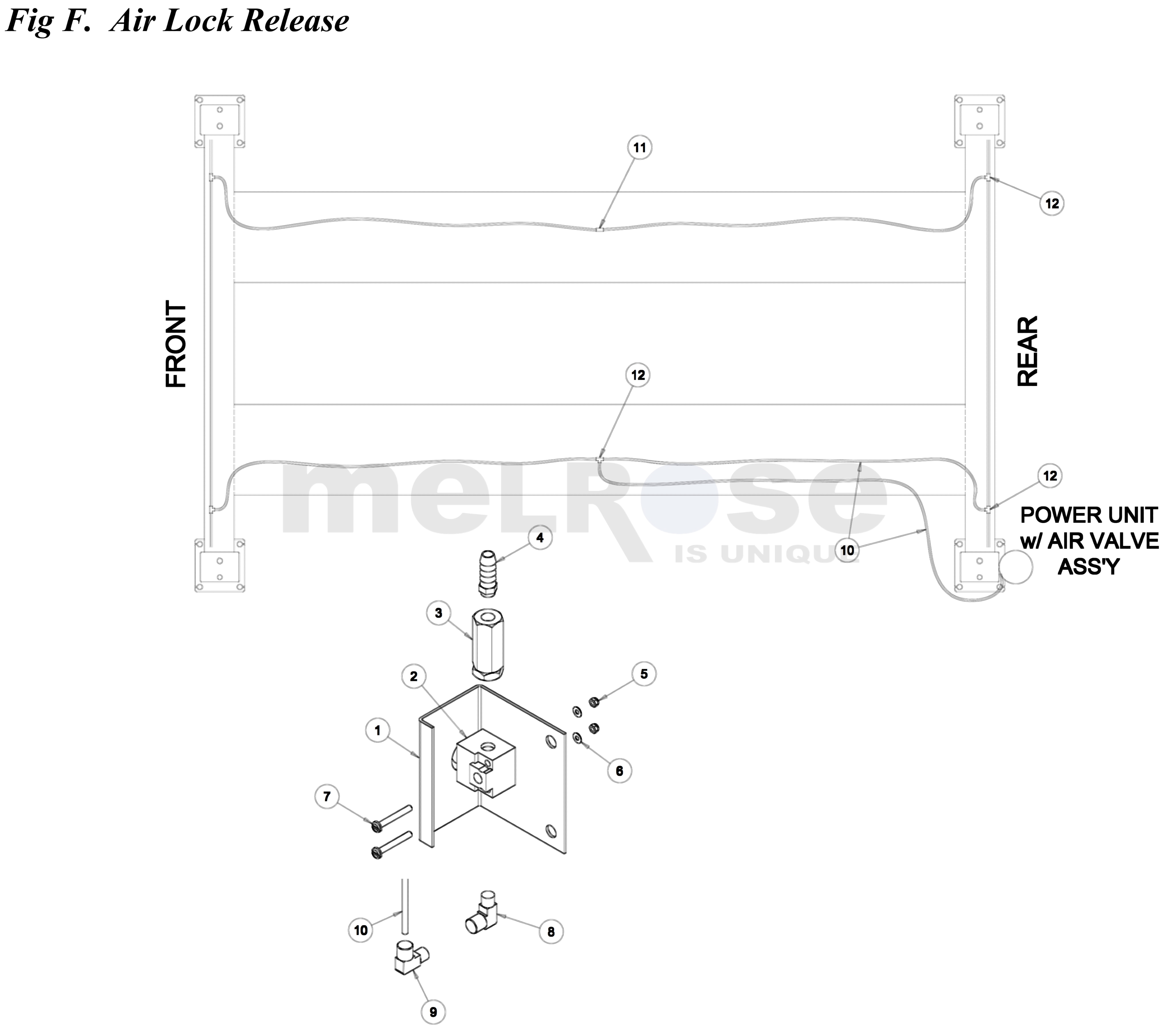

| 1 | 37015 | 1 | Button Valve Bracket |
| 2 | 37016 | 1 | Air Valve |
| 3 | 40091 | 1 | In-Line Air Filter |
| 4 | 37021 | 1 | Hose Barb |
| 5 | 37023 | 2 | #8-32 Hex Nut |
| 6 | 37024 | 2 | #8 Lock Washer |
| 7 | 37022 | 2 | #8-32 x 1 1/4" Lg. Pan Head Screw |
| 8 | 37020 | 1 | 1/8" NPT Street Elbow |
| 9 | B37019 | 1 | 1/8" NPTM x 4mm Push-Lock 90° Elbow |
| 10 | B00901 | 60 ft. | 4mm Dia. Plastic Air Line |
| 11 | B40445 | 1 | 4mm Straight Union |
| 12 | B37032 | 5 | 4mm Union Tee |
| — | B40090 | 1 | Button Valve Bracket Assembly (Contains Part #s: 1, 2, 3, 4, 5, 6, 7, 8) |
