Product Description

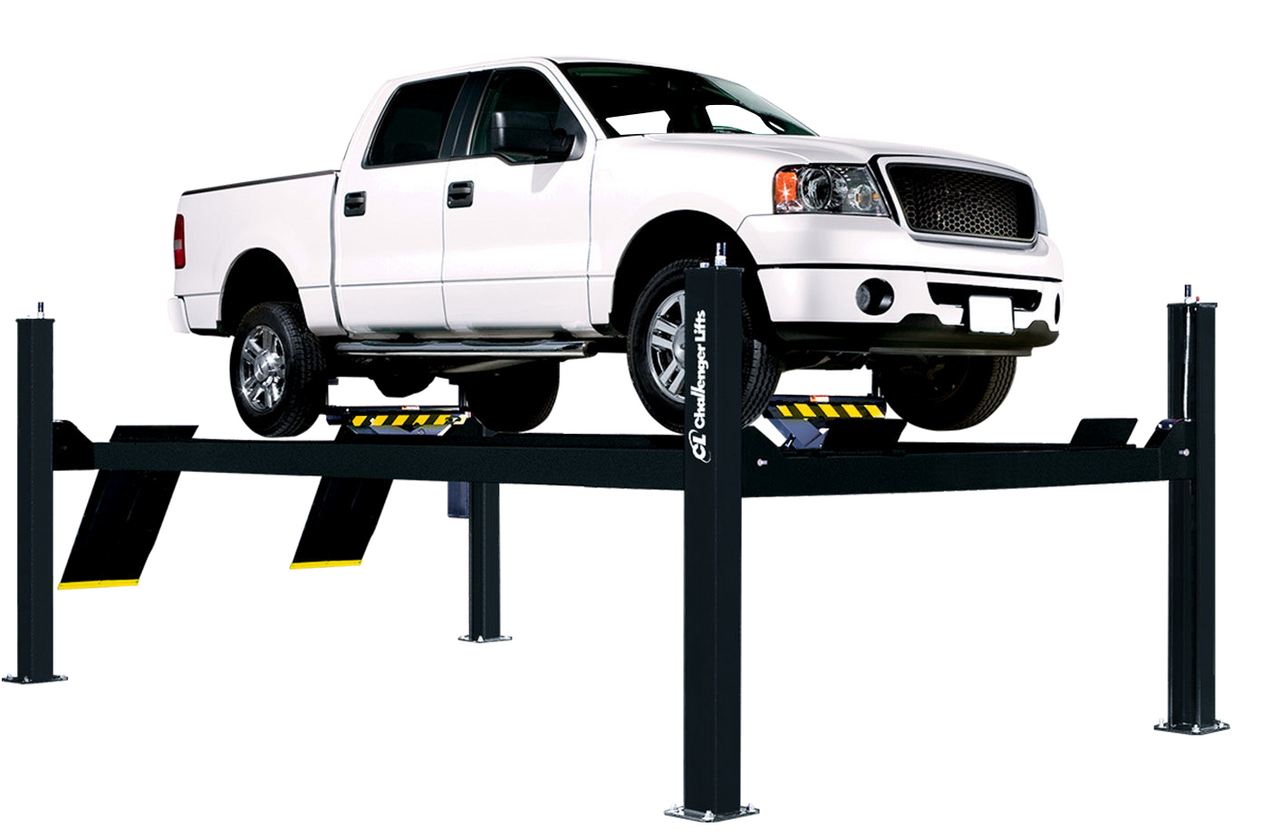

4P14 Series Challenger 14K 4-Post General Service Lift
Selecting the right lift for your shop means choosing dependable performance that supports daily productivity. The Challenger 4P14 14,000-lb. closed-front, drive-on 4-post lift is engineered to deliver reliability, efficiency, and long-term durability for professional service environments.
A low approach angle combined with wide runways allows vehicles of various sizes to drive on easily, helping technicians save time during positioning. The lift also features one of the highest lifting heights in its class, providing increased under-vehicle workspace and reflecting the strength of its heavy-duty column design.
Safety is a core focus throughout the lift’s construction, with components designed to protect both the operator and the vehicle during operation. For added flexibility, the lift includes louvered approach ramps and is offered in two different runway lengths to support a wide range of vehicle types and service applications.
To further enhance versatility, a selection of optional accessories are available, allowing the lift to be configured to meet specific shop needs. ALI/ETL certified, ensuring compliance with recognized industry safety and quality standards!
The 4P14 Series models come in two configurations, the 4P14EFX and 4P14XFX. These configurations differ in length, distance between columns and minimum/maximum wheelbases. Please see the specification chart at the bottom of the page for these differences.
**Free shipping to Continental United States.** Delivery will be made by motor freight. Customer is responsible for unloading the lift from delivery truck. Does not include installation, though installation is available locally.
**LOCAL PICK-UP IS AVAILABLE FOR IN STOCK LIFTS** Lift availability subject to stock. If we do not have the model currently available in our factory, it will ship out from Challenger directly to your location.
Manufacturer's warranty: 1 year parts, 1 year labor, 5 year structural parts.
Features
- 14,000 lb. lift capacity
- Closed front design with either 182.5″ or 210” (extended) wheelbase to accommodate long vehicles
- 20″ wide runways aid for drive-on confidence
- Louvered approach ramps provide superior traction for driving vehicles on and off ramp
- 78″ rise height, among the highest rise in the industry, provides maximum head room for working underneath vehicles
- 14-level locking positions, allowing ergonomic working height for technicians to increase productivity and minimize fatigue
- Powder coat finish provides long-lasting durability
- Available in black only
- ALI/ETL certified
Specifications
| Model Number | 4P14EFX | 4P14XFX |
|---|---|---|
| Lifting Capacity | 14,000 lbs. | 14,000 lbs. |
| Open or Closed Front | Closed | Closed |
| Max. Wheelbase | 182.5” | 210” |
| Rise Height | 78” | 78” |
| Overall Length | 245.75” | 273.25” |
| Overall Width | 130.75” | 130.75” |
| Inside Columns | 116” | 116” |
| Between Columns | 196” | 223.5” |
| Height of Columns | 90.5” | 90.5” |
| Width of Runways | 20” | 20” |
| Height of Runways | 7.25” | 7.25” |
| Width Between Runways | 40” / 43” | 40” / 43” |
| Air Supply Required | 90-120 psi | 90-120 psi |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed or Rise | 90 s | 90 s |
| Min. Recomm. Bay Size | 12’ x 24’ | 12’ x 26’ |
| ALI/ETL Certified | Yes | Yes |
| Color Available | Black | Black |
Resources
- Specification sheet including install requirements and service bay layout
- Installation, Operation & Maintenance Manual for 4P14EFX and 4P14XFX
- Parts Breakdown with clickable links to available parts for sale on our webstore
--------------------------------------------------------------------------------------------------------------------------------
