Product Description
Challenger Lifts VLE10 10,000lb. 2-Post Symmetric Lift
Challenger adds the industry leading Versymmetric® Technology to the popular economy grade 10,000 lb 2-post lift, the LE10. Expand your service capabilities with the VLE10’s ability to lift a wide range of vehicles, including Forbes Top 20 Best-Selling Vehicles of 2020.
Call for special pricing on in-stock lifts!!
Free shipping is for drop shipping from the factory. In stock items at Melrose may be picked up at our warehouse. Does not include installation, though installation is available locally.
Manufacturer's warranty: 2 year parts, 1 year labor.
Features
- 3-Stage Versymmetric® front arms and 2-Stage rear arms provide a wide arm sweep for asymmetric and symmetric lifting in the same service bay.
- 11.875” standard height fits in service bays with 12’ ceiling height.
- Double telescoping screw pads with rubber foot pad.
- Padded overhead shut-off system prevents vehicle damage.
- Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL series lifts are now standard on the VLE10.
- Rubber door guards protect vehicle from door damage.
- Premium powder coat finish provides long-lasting durability.
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability.
- ALI Certified
Specifications
** The LE10 has features that are improved upon from its model E10 predecessor. A list of its improvements can be found here. **
| Lifting Capacity | 10,000lbs. |
| Lift Configuration | Symmetric and Asymmetric |
| Arm Configuration | 3-Stage Versymmetric® Front / 2-Stage Rear |
| Max Load Per Arm | 2500 lbs |
| Rise Height (screw pads at highest position) | 74.75" |
| Overall Height | Standard: 143.875" Extended Height: 167.875" |
| Overall Width | 131.625" |
| Drive-Thru Clearance | 98.375" |
| Floor to Overhead Switch | Standard: 137" Extended Height: 161" |
| Front Arm Reach | 22.3125" - 39.375" |
| Rear Arm Reach | 38.375" - 55.375" |
| Screw Pad Height | 4.25" - 6.75" |
| Between Columns | 110.25" |
| Motor/Voltage | 208v - 230v, 2HP, 60Hz, Single Phase |
| Rise Time | 44 seconds |
| Ceiling Height Required | Standard: 12' Extended Height 14' |
| Colors Available | Red, Blue |
Optional frame engaging adapters (10314 or 10318) are REQUIRED when lifting vehicles with frame construction.

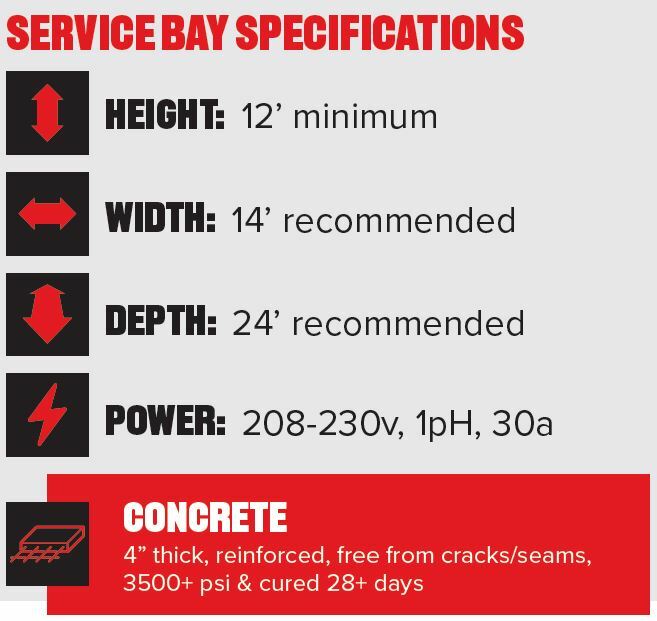

Requirements
Service Bay Layout
--------------------------------------------------------------------------------------------------------------------------------
